Name: Hybrid bond CNC diamond wheel for high-performance flute grinding
Brand: ZHENGZHOU SHINE ABRASIVES CO.,LTD
SKU: 4V2 1A1 14A2 1v1
Price: 50.00 USD
Availability: InStock

Thuis Producten Machines voor de vervaardiging van machines voor de vervaardiging van machines voor de vervaardiging

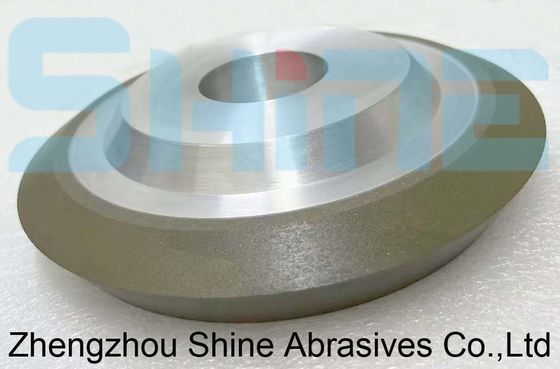

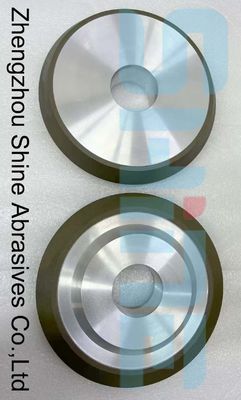

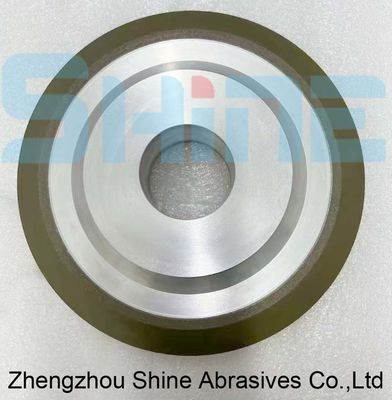

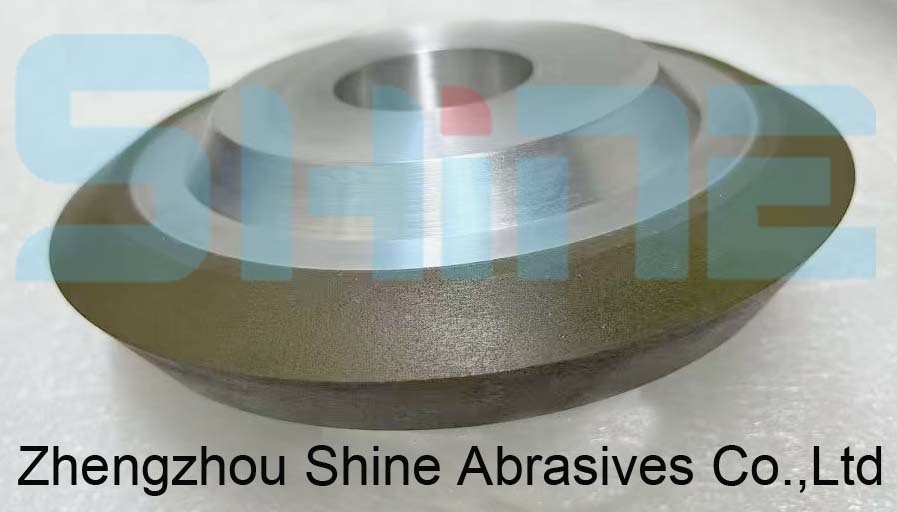

Hybrid bond CNC diamond wheel for high-performance flute grinding

Productdetails:

Plaats van herkomst:	CHINA
Merknaam:	Shine Abrasives
Certificering:	ISO
Modelnummer:	4V2 1A1 14A2 1v1

Betalen & Verzenden Algemene voorwaarden:

Min. bestelaantal:	2 pc's
Prijs:	FOB
Verpakking Details:	Eén in een doos.
Levertijd:	5 werkdagen
Betalingscondities:	L/c, t/t
Levering vermogen:	1000 stuks in één week

Contact

Gedetailleerde productomschrijving

Sollicitatie:	CNC-machines	Snelheid:	6000 tpm
Kleur:	Zilver	Maximale druk:	5MPa
Maat:	6 inch	Arbor -maat:	7/8 Duim
Maximale temperatuur:	150°C	Diamantrandgrootte:	6x6mm
Type obligatie:	Hybride	Binding:	Hars
HS -code:	6804211000	Efficiëntie:	SNEL
Maximale snelheid:	100m/s	Maximaal toerental per minuut:	6000 tpm
Hardheid:	Hoog
Markeren:	Hybrid bond CNC diamond wheel , CNC flute grinding wheel , high-performance diamond grinding wheel

Hybrid bond CNC diamond wheel for high-performance flute grinding

Hybrid bond CNC diamond wheel for high-performance flute grinding.Hybrid bond is Resin Bond, Metal Bond, and or processing methods to create a Hybrid that encompasses enhanced properties to deliver high performance results for some of manufacturing’s toughest grinding applications.

Wheel sizes form:

Diameter of D	Diamond depth of U	R	X	H
50mm	2,3,4,5,6,7,8,9,10	1/2 U	3 or 5 or 6	12.7,20,25.4 32 customize
75mm	2,3,4,5,6,7,8,9,10	1/2 U	3 or 5 or 6	12.7,20,25.4 32 customize
100mm	2,3,4,5,6,7,8,9,10	1/2 U	3 or 5 or 6	12.7,20,25.4 32 customize
125mm	2,3,4,5,6,7,8,9,10	1/2 U	3 or 5 or 6	12.7,20,25.4 32 customize
150mm	2,3,4,5,6,7,8,9,10	1/2 U	3 or 5 or 6 or 10	12.7,20,25.4 32 customize
175mm	2,3,4,5,6,7,8,9,10	1/2 U	3 or 5 or 6 or 10	12.7,20,25.4 32 customize
200mm	2,3,4,5,6,7,8,9,10	1/2 U	3 or 5 or 6 or 10	12.7,20,25.4 32 customize

Others sizes are available per requested.

*Grinding, PCD, PCBN, CVD, MCD, hard alloy and other cutting tools

*Bonding agents: ceramic bonding agents, resin bonding agents, metal bonding agents

*The particle size can reach up to 10000#

*Cutting edge quality less than 5 microns

*Provide dressing wheels to trim PCD grinding wheels
*Precision grinding: capable of achieving high accuracy and surface finish
*The bowl is mainly used for tool sharpening and surface milling, suitable for grinding metal and non-metal hard and brittle material with low iron content.
