| Plaats van herkomst: | China |
| Merknaam: | Shine Abrasives |
| Certificering: | ISO |
| Modelnummer: | 4V2 1A1 14A2 9A3 12V9 |
| Min. bestelaantal: | 2 STUKS |
|---|---|
| Prijs: | FOB |
| Verpakking Details: | Eén in een doos. |
| Levertijd: | 5 werkdagen |
| Betalingscondities: | L/C, T/T |
| Levering vermogen: | 1000 stuks in één week |
| Arbor -maat: | 5/8 inch, 1 inch | Abrasieve diepte: | 1/4 inch |
|---|---|---|---|
| Het Aantal van het wielgat: | Varieert | wielbreedte: | 10 mm |
| Wielbinding: | Hars | Snelheid: | Hoog |
| Wielkleur: | Varieert | Kwaliteit: | Hoog |
| Verbinden: | verglaasd, metaal | Viscositeit: | Goed |
| Korrelgrootte: | Aangepast | koelmethode: | Droog, nat |
| Stijl: | 1V1 | Structuur: | Dicht |
| Slijtvastheid: | Hoog | ||
| Markeren: | 12V9 resin bond diamond wheel,diamond grinding wheel for carbide knives,sharpening wheel for carbide tools |
||

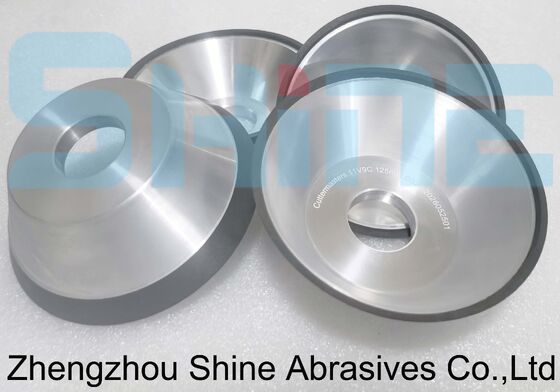

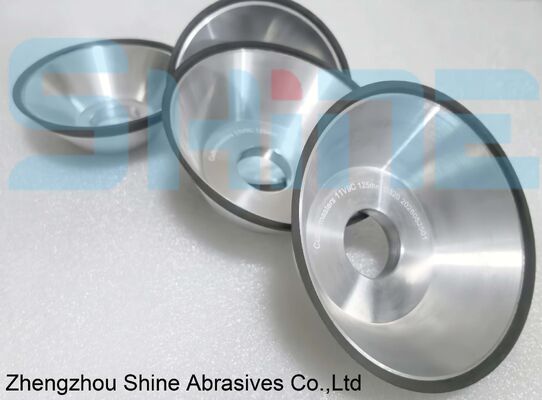

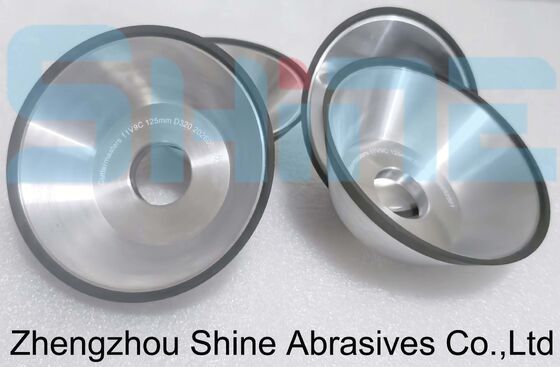

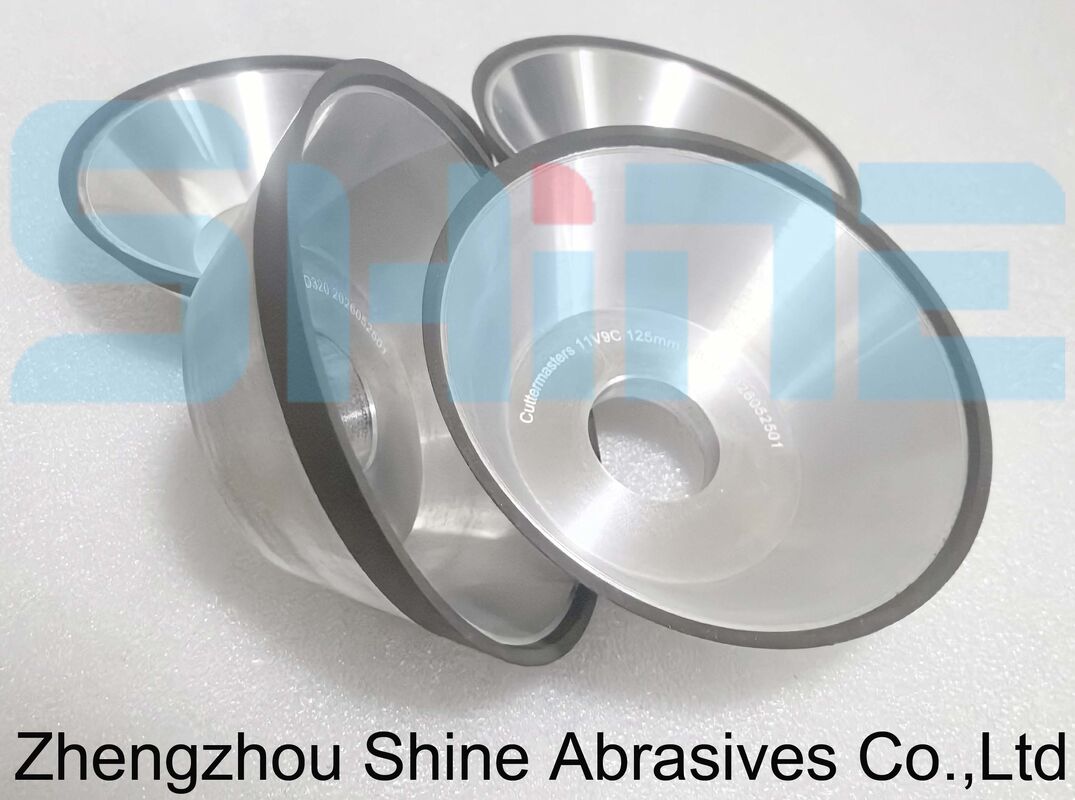

12V9 resin diamond grinding wheel is mainly used for cylindrical grinding and cutting edge processing of cemented carbide.It is suitable for grinding metal and non-metal hard and brittle materials with low iron content,such as cemented carbide,high alumina porcelain, optical glass, agate gemstone, semiconductor material, ceramics, stone, etc.
| D | T | H | X | V | |||
| mm | Inch | mm | Inch | state bore dimension | mm | Inch | 70° |
| 75 | 3 | 35 | 1-1/4 | 3-6 | 1/8-1/4 | ||
| 100 | 4 | 35 | 1-1/4 | 3-6 | 1/8-1/4 | ||
| 125 | 5 | 35 | 1-1/4 | 3-6 | 1/8-1/4 | ||
| 150 | 6 | 35 | 1-1/4 | 3-6 | 1/8-1/4 | ||
| Other dimensons are available on request | |||||||
Resin diamond grinding wheel for sharpening carbide tools are used for tungsten carbide, high speed steel (HSS), stainless drill,end mill and reamer. We will provide a complete solution for tools manufacturing process, including fluting, gashing and clear edge, relief angle grinding .
![]()
